SQL反模式--包闭表
评论系统的数据库设计
最好的方法才是采用包闭表的设计模式
评论的表结构如下
CREATE TABLE Comments ( comment_id SERIAL PRIMARY KEY, bug_id BIGINT UNSIGNED NOT NULL, author BIGINT UNSIGNED NOT NULL, comment_date DATETIME NOT NULL, comment TEXT NOT NULL, FOREIGN KEY (bug_id) REFERENCES Bugs(bug_id), FOREIGN KEY (author) REFERENCES Accounts(account_id) );
引入包闭表 CREATE TABLE TreePaths ( ancestor BIGINT UNSIGNED NOT NULL, descendant BIGINT UNSIGNED NOT NULL, PRIMARY KEY(ancestor, descendant), FOREIGN KEY (ancestor) REFERENCES Comments(comment_id), FOREIGN KEY (descendant) REFERENCES Comments(comment_id) );

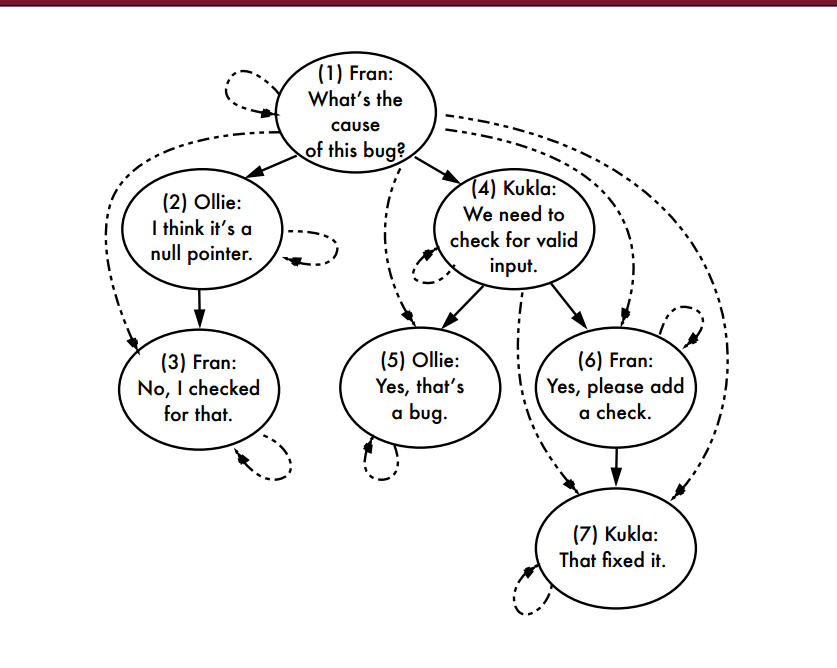

数据库E-R图
新增评论的SQL语句
假设新增评论id: 2,跟随的评论id是1,那么就是 insert into TreePaths(ancestor,descendant)
select t.ancestor,2
from TreePaths as t
where t.descendant = 1
union
select 2,2;
删除一个叶子节点(最后的评论) 假设id=3; delete from TreePaths where descendant = 3
删除一个子树
delete from TreePaths
where descendant in
(select descendant from TreePaths where ancestor = id)
移动一个子树 假设移动的是E-R图中的#6评论的子树到#3评论
-先删除与子树的非直系关系(路径)
取祖先为6的节点的后代,取后代为6的节点的祖先,再剔除(6,6)本身,进行乘积运算,得到的行就是要删掉的
delete from TreePaths
where ancestor in (select ancestor
from TreePaths
where descendant = 6)
And
descendant in (select descendant
from TreePaths
where ancestor = 6);
经过这个删除,子树就孤立出来了,但还是在表中,只是他们的数学逻辑关系没了,就是path,路径没有了
孤立出来后,既然没有数学关系,那么给它加入关系,连接到评论#3去
使用笛卡尔积运算,选出合适的关系,插入
insert into TreePaths (ancestor,descendant)
select t.ancestor, subT.descendant
from TreePaths as t
cross join TreePaths subT
where t.descendant = 3
And
subT.ancestor = 6;
